合路器1710-1880/1920-2170 MHz
| Part No. | 80552 | |
| 电气 | ||
| 频率范围 (MHz) | Port1 | 1710-1880 |
| Port2 | 1920-2170 | |
| 插入损耗(dB) | ≤0.5 | |
| 隔离 (dB) | ≥80 | |
| 回损/VSWR | ≤-20dB/1.22 | |
| 互调 (dBc) | ≤-150/155/160 (with 2×20W) | |
| 阻抗 (Ω) | 50 Ω | |
| 输入功率 (W) | ≤200 W (avg.) | |
| DC/AISG | By-pass (max. 3000mA) | |
| 防雷保护 | 10KA; 10/350μs pulse | |
| 环境 | ||
| 工作温度 | -20 °C to +65 °C | |
| 储存温度 | -40 °C to +85 °C | |
| 相对湿度 | 5% - 95% | |
| 应用 | 室内或室外 (IP67) | |
| 机械 | ||
| 接头 | 7/16 母头 | |
| 包装 | 1pc /box | |

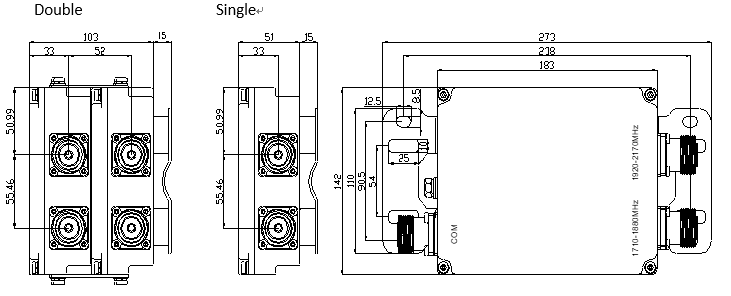

| 代码 | 类型 | DC pass | 重量 (kg) | 尺寸 (mm) | 接头 |
| 8055270 | Single | DC pass all | ≤2.1 | 183*142*51 | 7/16 Female |
| 8055269 | Double | DC pass all | ≤4.3 | 183*142*103 | 7/16 Female |
