合路器 890.2-894.6&935.2-939.6/905-914.8&950-959.8 MHz
| 电性能指标 | |||
| 频率范围 (MHz) | Port1 | 890.2-894.6&935.2-939.6 | |
| Port 2 | 905-914.8&950-959.8 | ||
| 插入损耗 (dB) | ≤0.6 | ||
| 端口隔离(dB) | ≥30 | ||
| 回波损耗/驻波比 | ≤-20dB/1.22 | ||
| 互调值 (dBc) | ≤-150/155/160 (with 2×20W) | ||
| 阻抗 (Ω) | 50 Ω | ||
| 输入功率 (W) | ≤200 W(avg.) | ||
| 防雷指数 | 10KA; 10/350μs pulse | ||
| 环境指标 | |||
| 工作温度 | -20°C ~ +65 °C | ||
| 储存温度 | -40 °C ~ +85 °C | ||
| 相对湿度 | 5% - 95% | ||
| 应用 | 室内/室外 (IP67) | ||
| 机械性能指标 | |||
| 接头 | 4.3-10 Female | ||
| 包装 | 1pc /box | ||
| 编码 | 类型 | DC pass | 重量(kg) | 尺寸 (mm) | 接头 |
| 8056652 | Single | DC pass all | ≤3 | 238*175*66 | 4.3-10 Female |

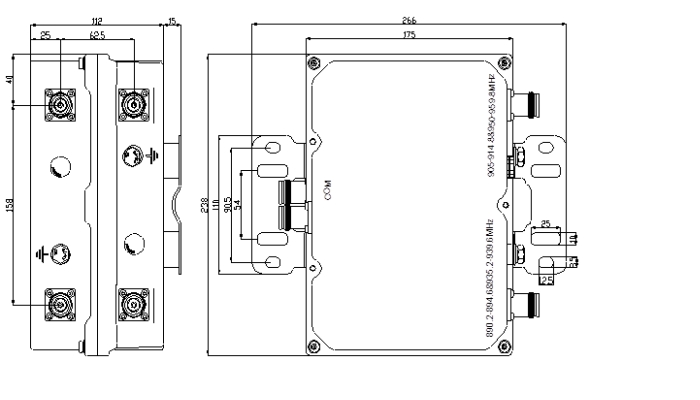

| 8056653 | Double | DC pass all | ≤6 | 238*175*66 | 4.3-10 Female |
