合路器1710-1880/2300-2700 MHz
| Part No. | 80283 | |
| 电气 | ||
| 频率范围 (MHz) | Port1 | 1710-1880 |
| Port2 | 2300-2700 | |
| Insertion loss(dB) | ≤0.3 | |
| 隔离(dB) | ≥50 | |
| 回损/VSWR | ≤-20dB/1.22 | |
| 互调 (dBc) | ≤-150/155/160 (with 2×20W) | |
| 阻抗 (Ω) | 50 Ω | |
| 输入功率 (W) | ≤200 W(avg.) | |
| DC/AISG | By-pass(max.3000mA) | |
| 防雷保护 | 10KA; 10/350μs pulse | |
| 环境 | ||
| 工作温度 | -20°C to +65 °C | |
| 储存温度 | -40 °C to +85 °C | |
| Relativehumidity | 5% - 95% | |
| 应用 | 室内或室外 (IP67) | |
| 机械 | ||
| 接头 | 7/16 Female | |
| 包装 | 1pc /box | |

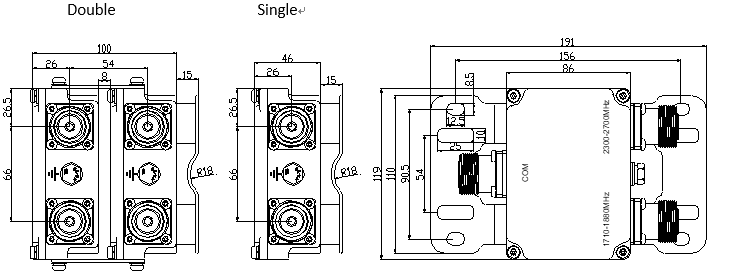

| 代码 | 类型 | DC pass | 重量(kg) | 尺寸 (mm) | 接头 |
| 8028351 | Single | DC pass all | ≤1.2 | 119*86*46 | 7/16 Female |
| 8028352 | Double | DC pass all | ≤2.4 | 119*86*100 | 7/16 Female |
