合路器555-2180/2300-2700 MHz
产品描述
| Part No. |
80286 |
| 电气 |
| 频率范围 (MHz) |
Port1 |
555-2180
Or 698-2180 |
| Port2 |
2300-2700 |
| 插入损耗(dB) |
≤0.4 |
| 隔离 (dB) |
≥60 |
| 回损/VSWR |
≤-20dB/1.22 |
| 互调 (dBc) |
≤-150/155 (with 2×20W) |
| 阻抗 (Ω) |
50 Ω |
| 输入功率 (W) |
≤200 W (avg.) |
| DC/AISG |
By-pass (max. 3000mA) |
| 防雷保护 |
10KA; 10/350μs pulse |
| 环境 |
| 工作温度 |
-20°C to +65 °C |
| 储存温度 |
-40 °C to +85 °C |
| Relative humidity |
5% - 95% |
| 应用 |
室内或室外 (IP67) |
| 机械 |
| 接头 |
7/16 Female |
| 包装 |
1pc /box |
| 代码 |
类型 |
DC pass |
重量 (kg) |
尺寸 (mm) |
接头 |

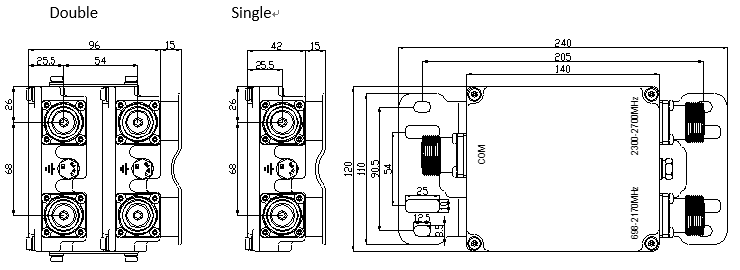

| 8028652 |
Single |
DC pass all |
≤1.2 |
140*120*42 |
7/16 Female |
| 8028654 |
Double |
DC pass all |
≤2.5 |
140*120*96 |
7/16 Female |
